Thermoplastic Road Marking Machine
- PRODUCT DETAIL
|

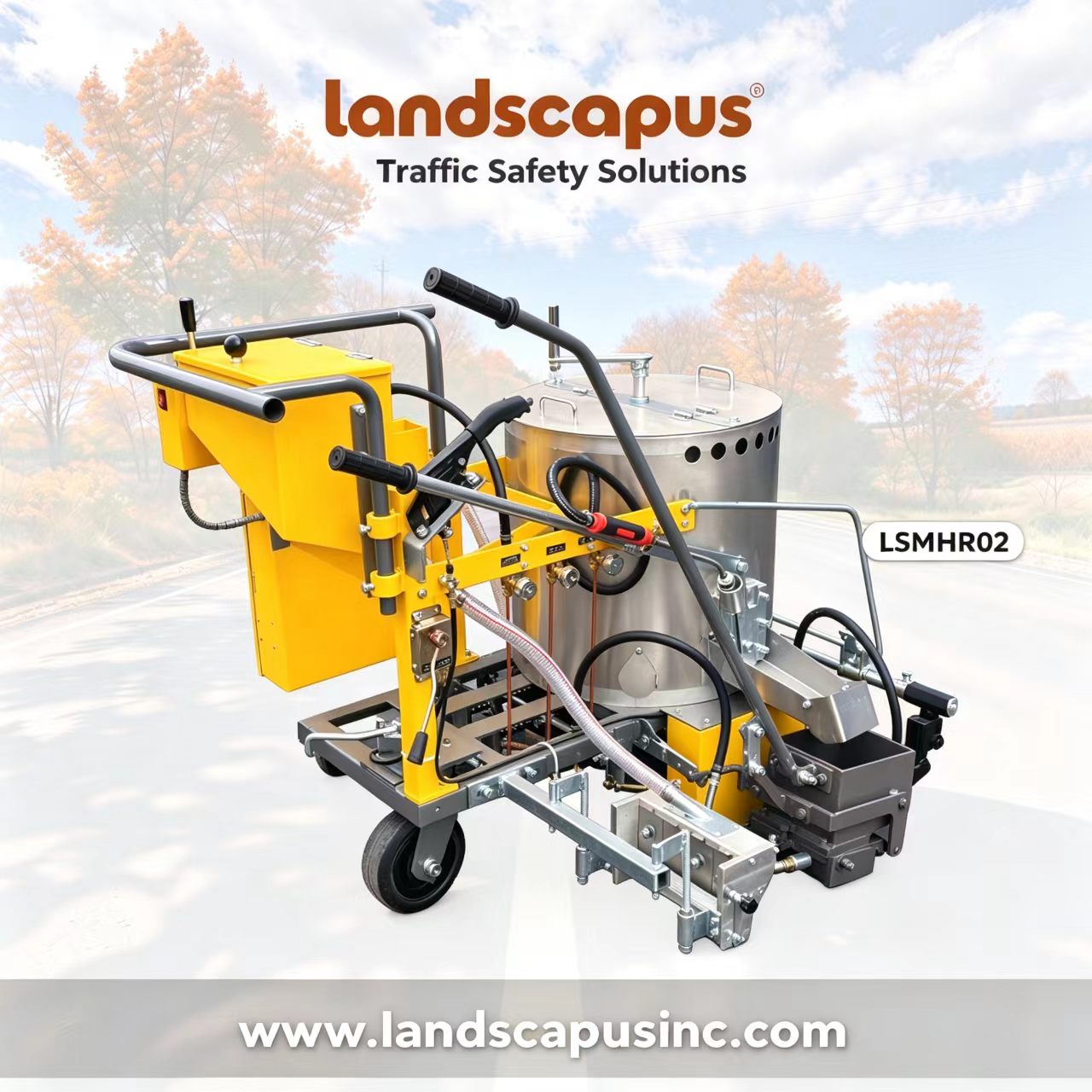

Model |
LSM-HR02 |
|
Driving type |
550W electric motor，48V/12Ah lithium battery, 8-hour runtime |
|
Paint tank material |
stainless steel |
|
Paint tank capacity |
100kg/50L |
|
Glass beads dispenser |
Standard： 20cm single Optional: 20/45cm single & dual Adjustable spreading width and density
|
|
Glass beads distribution |
200-250g/m² |
|
Marking width |
Standard: 15/20cm marking shoe Optional： 5/10/15/20/30/40/45/50cm |
|
Heat temperature |
180-220℃ |
|
Line thickness |
1.5-3mm (adjustable) |
|
Climbing ability |
15° |
|
Walking speed |
Forward 10km/h, backward 6km/h |
|
Optional configuration |
Normal road marking shoe, Warning light, Line pattern customized
|
|
Dimensions(L*W*H) N.W. |
1250×900×1000 mm 140 kgs |

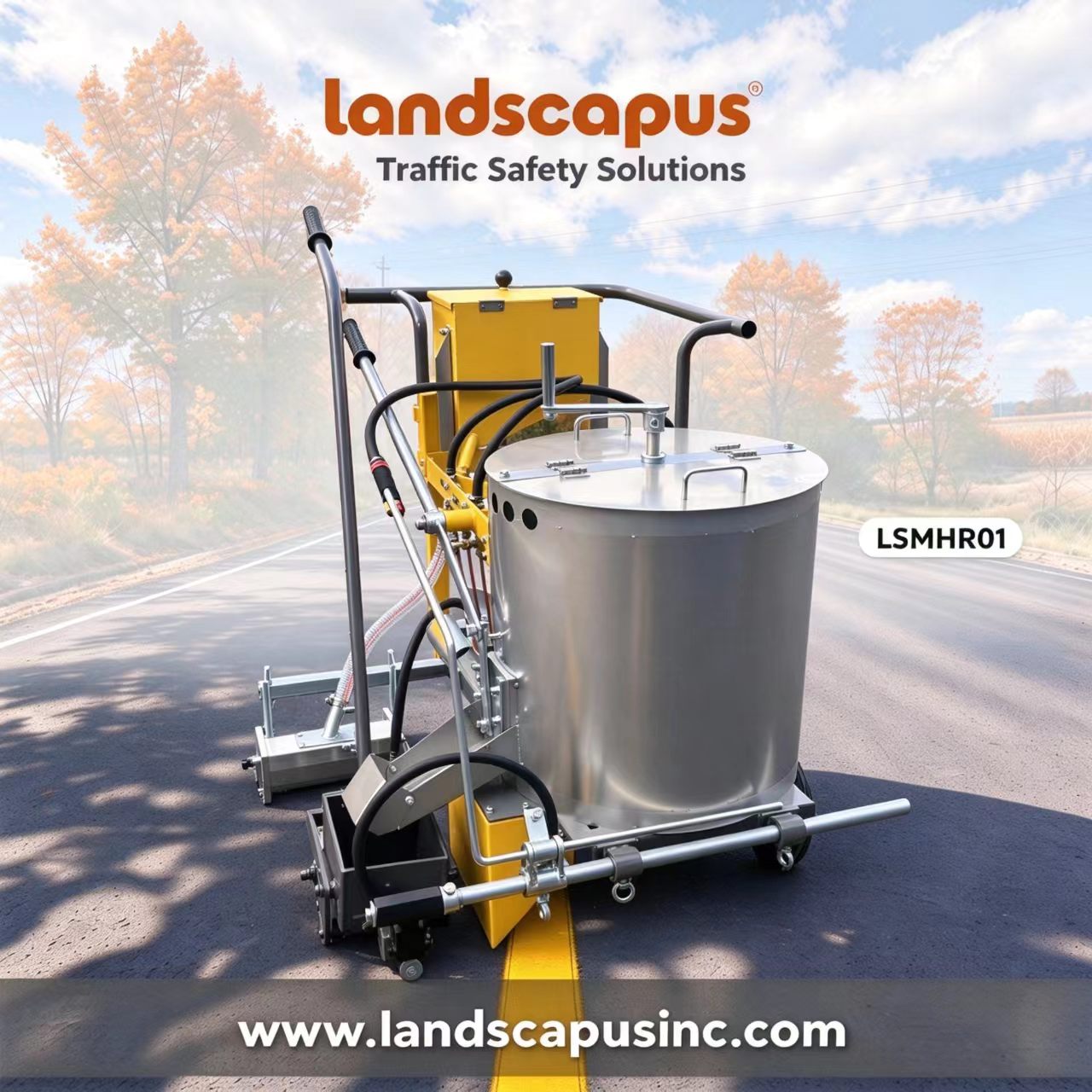

Model
LSM-HR01
Driving type
Manual push
Paint tank material
stainless steel
Paint tank capacity
100kg/50L
Glass beads dispenser
Standard :20cm single
Optional : 20/45cm single & dual Adjustable spreading width and density
Glass beads distribution
200-250g/m²
Marking width
Standard: 15/20cm marking shoe
Optional： 5/10/15/20/30/40/45/50cm
Heat temperature Line thickness
180-220℃
1.5-3mm (adjustable)
Optional configuration
Normal road marking shoe,
Warning light, Line pattern customized
Dimensions(L*W*H) N.W.
1250×900×1000 mm
120 kgs
