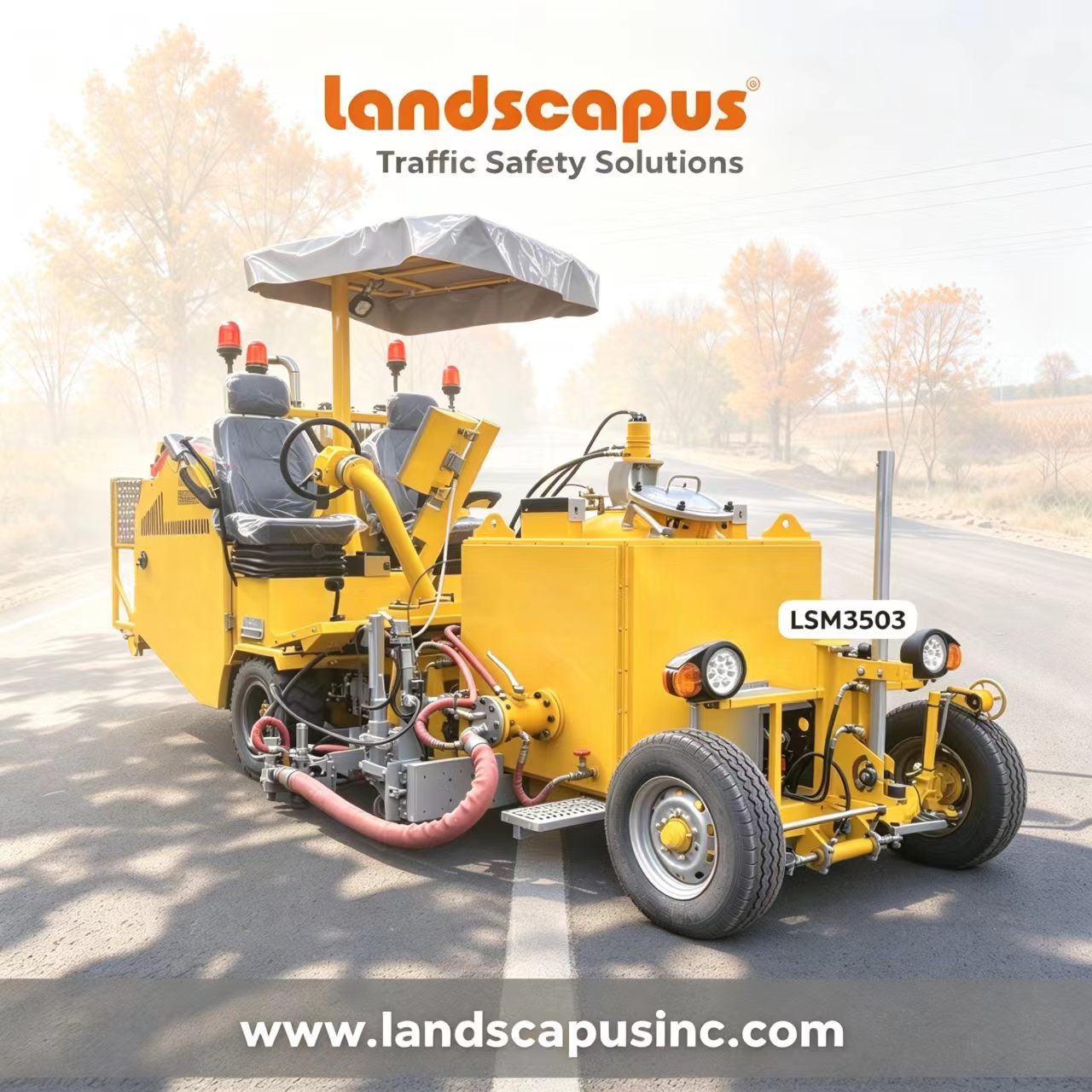

Model

LSM3503-300 LSM3503-500

Optional engine

Kubota 43.3kW/2700rmp Kubota 67.6kW/2400rmp

Cummins 59kW/2500rmp Cummins 81kW/2500rmp

Air compressor

1200–2400 L/min,at 8 bar,screw type air compressor

Paint tank capacity

300L(600KG) 500L(1000KG)

Burner type

Beckett burner (USA), circulating heating with heat transfer oil,automatic temp.control

Hydraulic system

DANFOSS ( Denmark )

Hydraulic oil tank

168L 218L

Fuel tank

84L 138L

Glass bead tank capacity

200L pressurized tank

Spray guns

With 1pcs spray gun With 2pcs spray guns

Line width

10 - 20 cm 10 - 40 cm

Travel speed

0-22km/h

Climbing ability

13°

Turning radius

3.2M

Dimensions (LWH)

6350×2250×2650mm 6630×2250×2650mm

Net weight

3700kg 4800kg

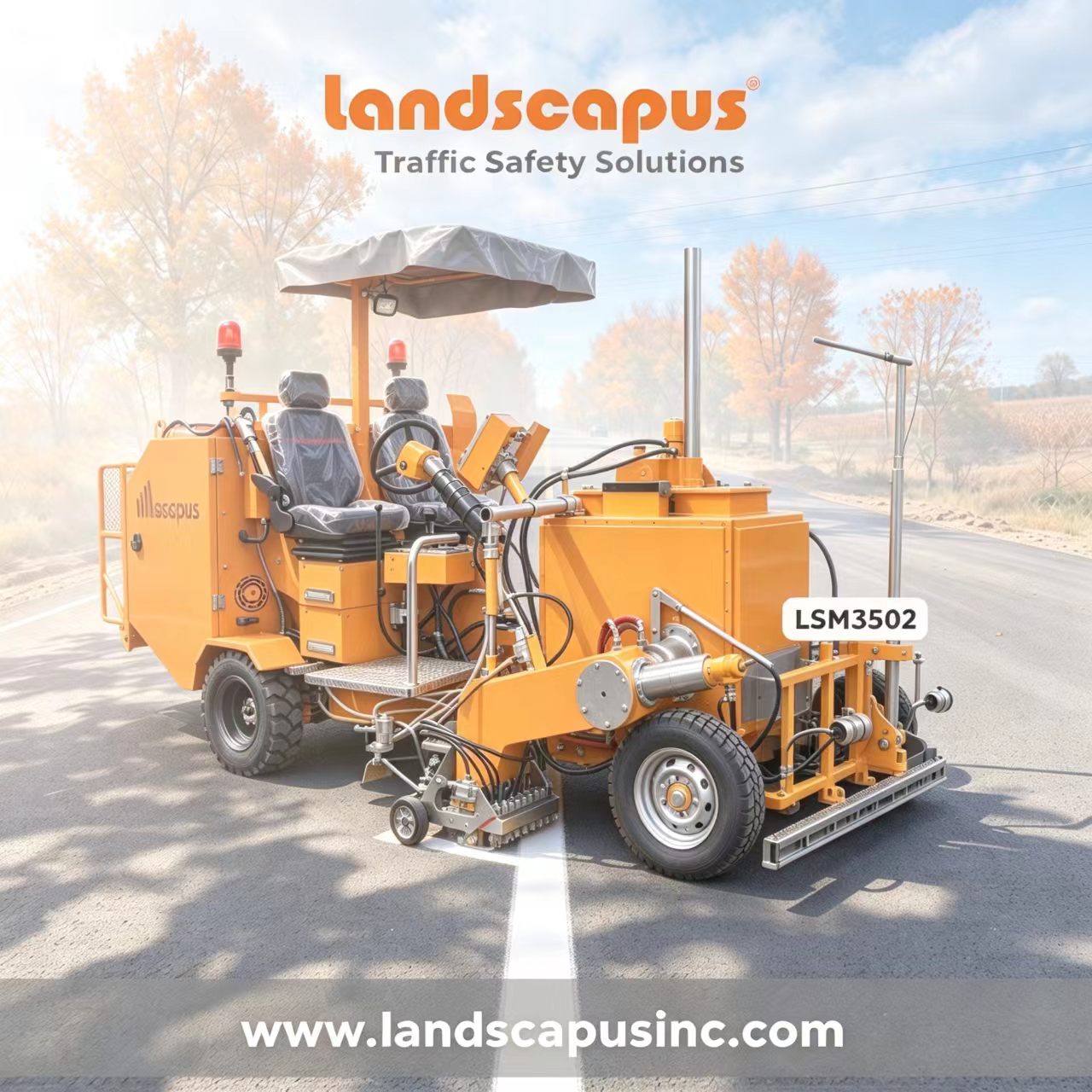

Model

LSM3502-300 LSM3502-500

Optional Engine

Kubota 43.3kW/2700rmp Kubota 67.6kW/2400rmp

Cummins 59kW/2500rmp Cummins 81kW/2500rmp

Air compressor

1200–1800 L/min , at 8 bar , piston type air compressor

Hydraulic system

DANFOSS ( Denmark )

Hydraulic oil tank

168L 218L

Fuel tank

84L 138L

Travel speed

0-22km/h

Climbing ability

13°

Heating method

Beckett diesel burner(USA), thermal oil circulation insulation, automatic temperature control

Paint tank capacity

300L (600kg) 500L (1000kg)

Glass bead tank

200L pressurized tank

Line width

Standard 30cm, each 5cm section constitutes one control unit, totaling 6 control units.

30,40,45, 50cm. Each 5cm on the extruder constitutes one control unit.

Marking mode

Flat lines, checkerboard lines, staircase lines, piano lines, and other pre-programmed markings

Marking setting

Select the line mode on the computer panel and set the marking parameters

Construction efficiency

300 m²/h 450 m²/h

Dimension (LWH)

6000 × 2200 × 2630 mm（Kubota）

5700 × 2200 × 2750 mm（Cummins）

Net weight

3954 kg 4800 kg

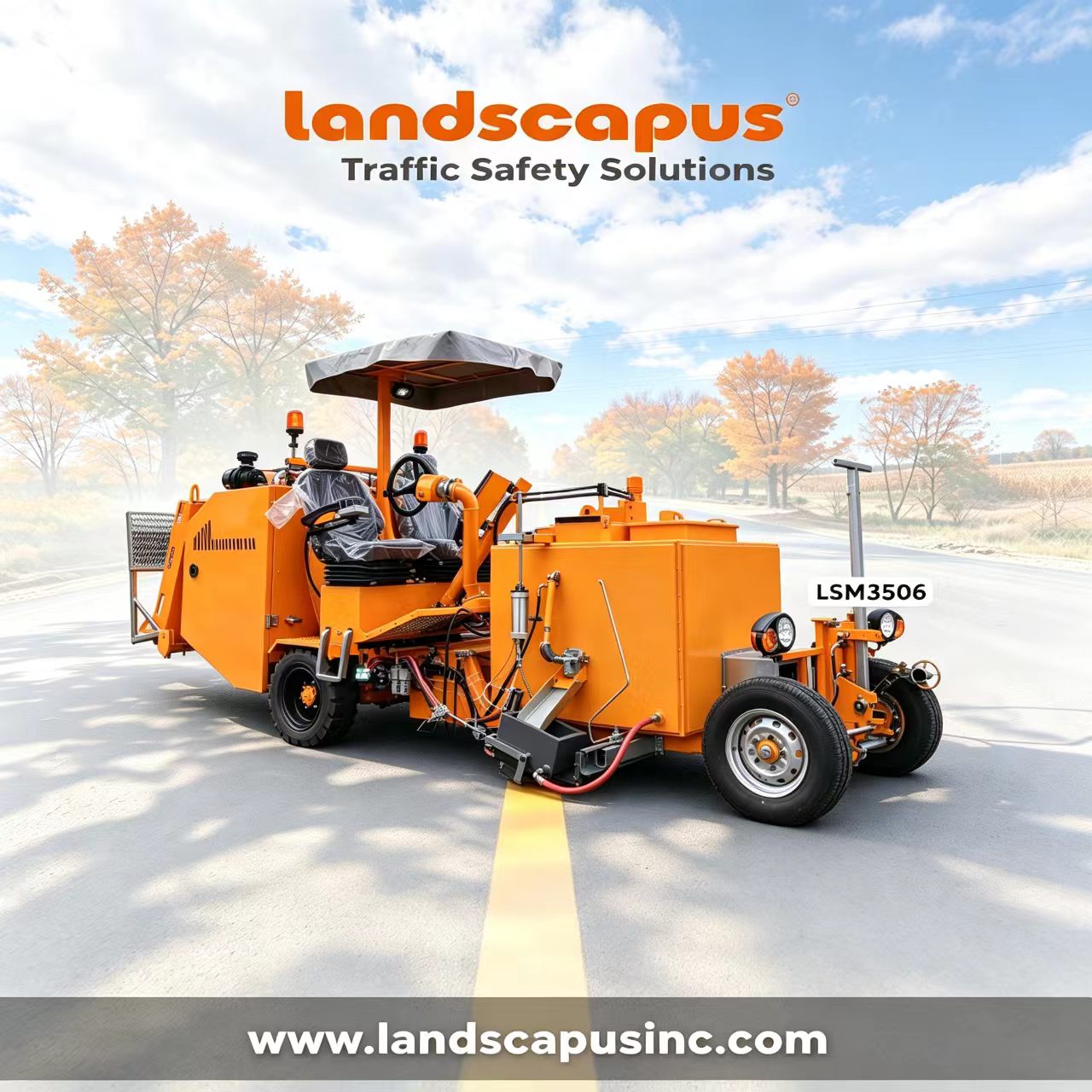

Model

LSM3506-300                           LSM3506-500

Optional Engine

Kubota 43.3kW/2700rmp Kubota 67.6kW/2400rmp

Cummins 59kW/2500rmp Cummins 81kW/2500rmp

Air compressor

490L/min,at 8 bar ，piston type air compressor

Paint tank capacity

300L(600KG) 500L(1000KG)

Burner type

Beckett diesel burner(USA), thermal oil circulation insulation, automatic temperature control

Hydraulic system

DANFOSS ( Denmark )

Glass Beads tank capacity

200L pressurized tank

Line width

Screed marking shoe:STD 150mm (50-500mm Optional)

Travel speed

0-22km/h

Climbing ability

13°

Efficiency

200㎡/h

Line type

Flat line convex line（optional）

Dimension (LWH)

4550×2200×2550
