Mini Driving Pavement Marking Machines
- PRODUCT DETAIL
|

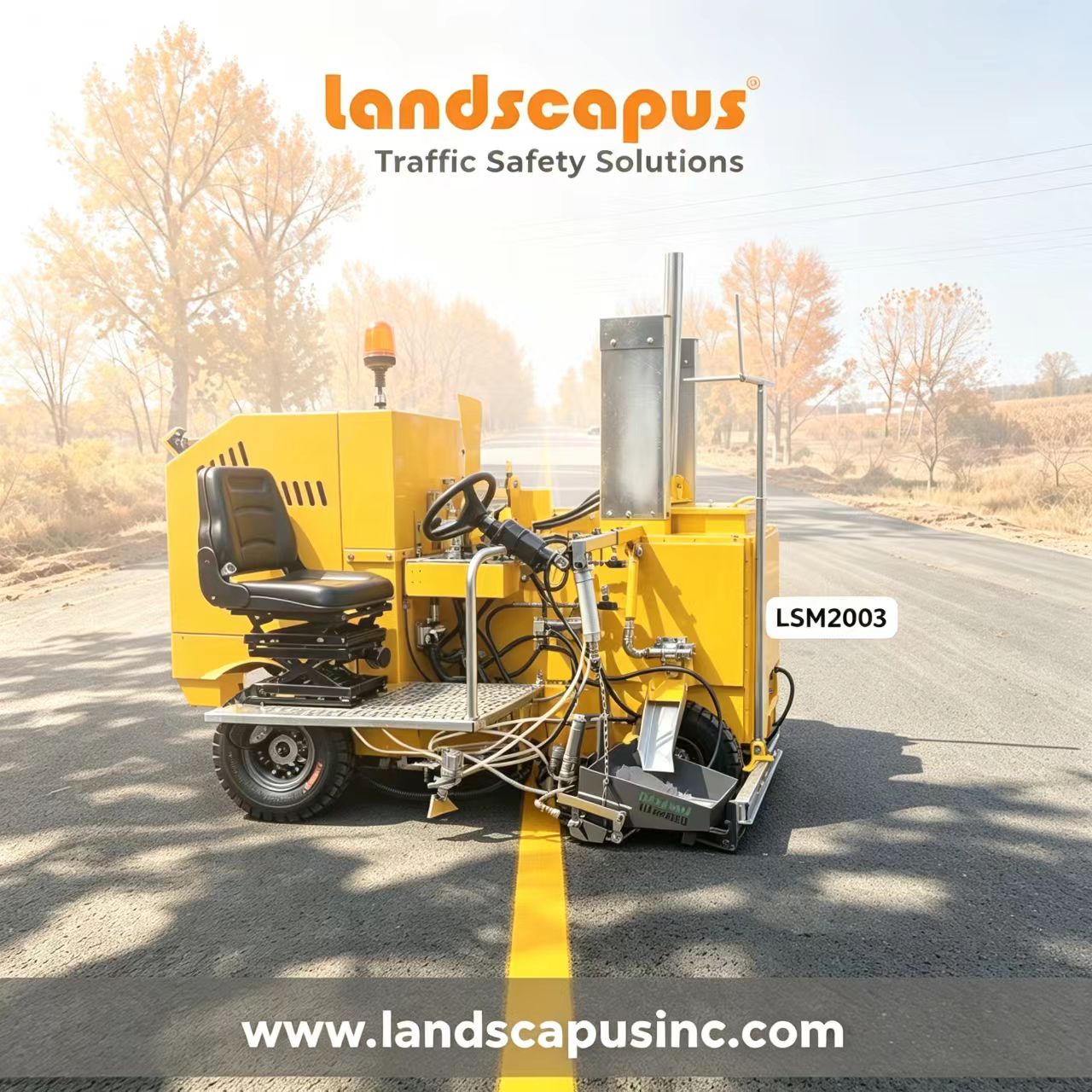

Model |
LSM2003 |
|
Optional Engine |
Gasoline engine: HONDA GX690 ，13kW Diesel engine: KUBOTA V1505-T, 32.5kW |
|
Fuel tank capacity |
80L |
|
Air compressor |
320L/min,at 8 bar ，piston type air compressor |
|
Paint tank capacity |
180L (360kg), hydraulic stirring |
|
Heating type |
LPG,direct burning,without automatic temperature control |
|
Hydraulic system |
DANFOSS ( Denmark ) |
|
Hydraulic oil tank capacity |
85L |
|
Glass bead tank capacity |
75L pressurizedtank |
|
Marking shoes size |
Standard: 15cm (5～50cm optional exchangeable) |
|
Line width |
5~50CM according to marking shoes size |
|
Line models |
Solid line / Automatic dashed line /Convex line (Optional) |
|
Air Glass Beads dispenser |
Standard: 1 gun, (40～50cm line should with 2 guns) |
|
Travel speed |
0~8km/h |
|
Efficiency |
150~200㎡/h |
|
Climbing ability |
13° |
|
Dimension (LWH) |
2300*1760*2300mm（Gasoline engine） / 2300*1800*2300mm（ Diesel engine） |
|
Net weight |
1360kg（Gasoline engine） / 1490kg （Diesel engine） |
|

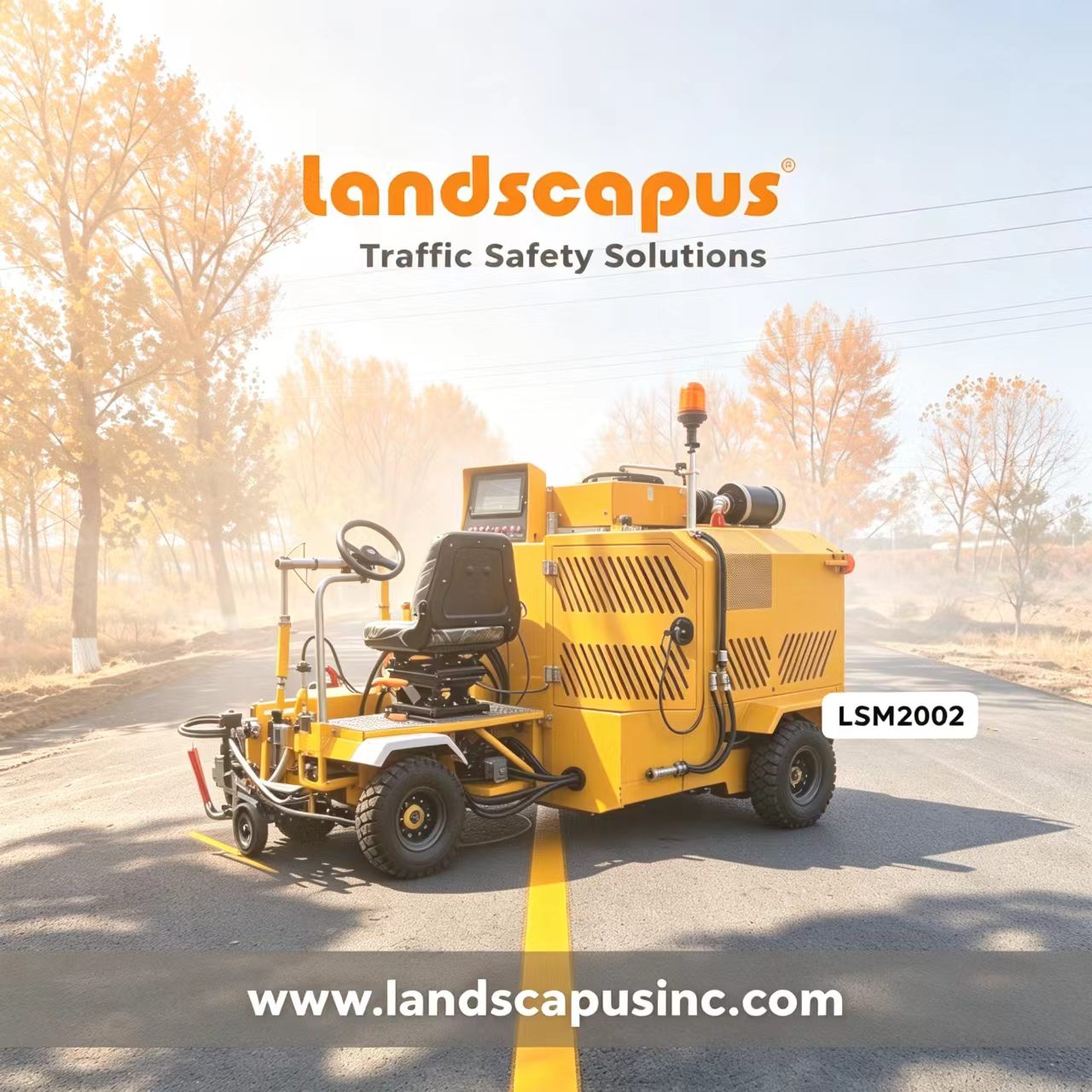

Model |
LSM2002 |
|
Optional Engine |
Kubota V-1505T 32.5kW/3000rmp Yanmar 4TNV88C-KTY 34.3kW/2800rmp (EU StageⅤ) |
|
Fuel tank capacity |
94L |
|
Air compressor |
320L/min,at 8 bar piston type air compressor |
|
Paint tank capacity |
180L (360kg), hydraulic stirring |
|
Heating type |
Beckett diesel burner(USA), thermal oil circulation insulation, automatic temperature control |
|
Hydraulic system |
DANFOSS ( Denmark ) |
|
Hydraulic oil tank capacity |
150L |
|
Glass bead tank capacity |
110L pressurized tank |
|
Marking shoe size |
20cm |
|
Line width |
15cm / 20cm（customized） |
|
Line models |
Solid line / Automatic dashed line |
|
Air glass bead dispenser |
Standard: 1 gun |
|
Travel speed |
0~10km/h |
|
Efficiency |
200-250㎡/h |
|
Climbing ability |
13° |
|
Dimensions (LWH) |
2800*1850*1800mm |
|
Net weight |
2100kg |
|

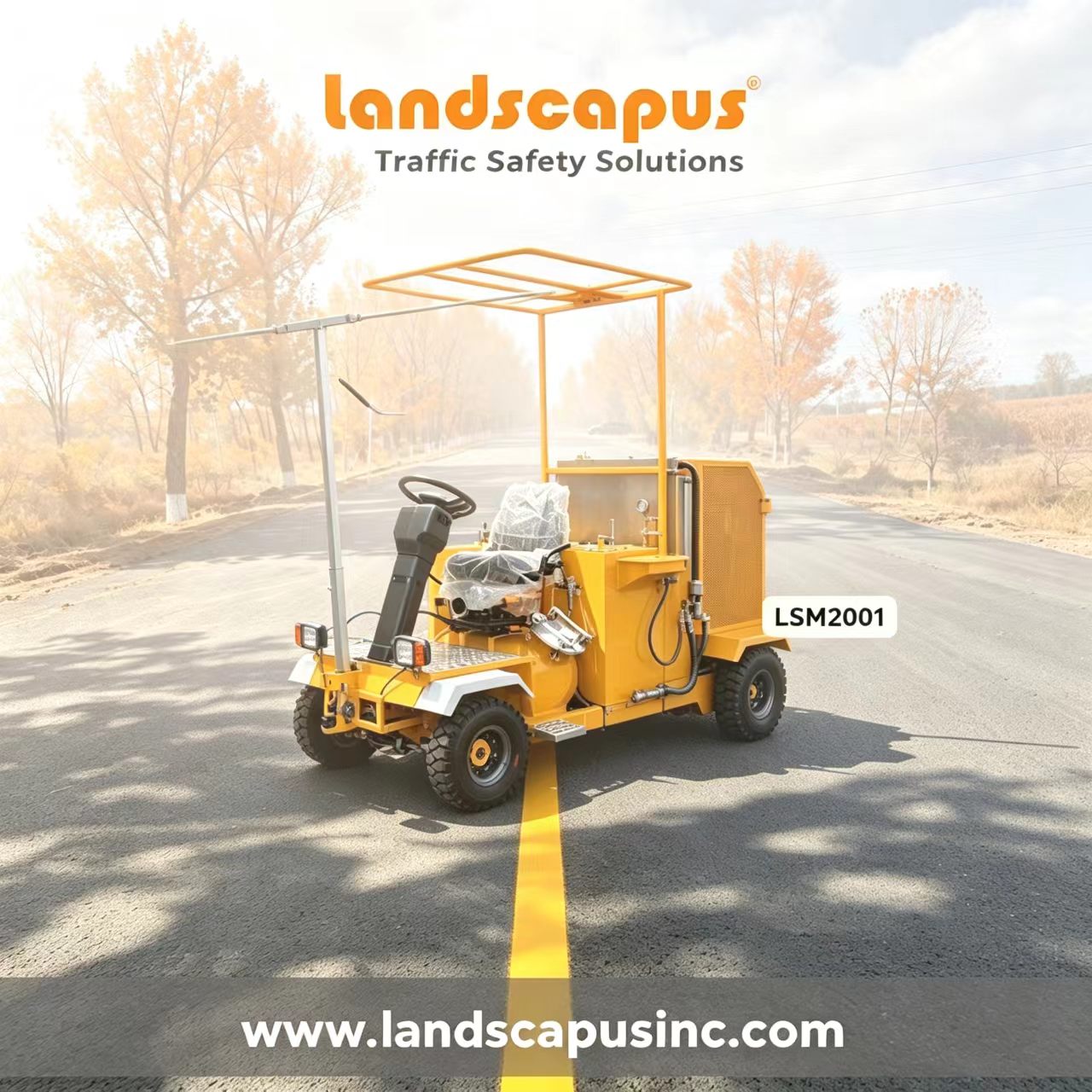

Model |
LSM2001 |
|
Engine |
HONDA GX690, gasoline engine, 16.5kW,3600(r/min) |
|
Fuel tank capacity |
50L |
|
Hydraulic system |
DANFOSS ( Denmark ) |
|
Travel speed |
0-8km/h |
|
Climbing ability |
15° |
|
Air compressor |
320L/min,at 8 bar , piston type air compressor |
|
Hydraulic plunger pumps |
9L/min × 2 |
|
Working pressure |
10-20MPa |
|
Spray gun |
2 automatic and 1 manual |
|
Spraying width |
50—600mm |
|
Paint tank capacity |
190L(380kg) |
|
Glass bead tank |
50L pressurized tank |
|
Glass Beads spray gun |
2pcs |
|
Marking mode |
Cold paint marking, two-component marking(1:1) |
|
Marking setting |
Automatic broken line,solid line |
|
Hydraulic oil tank capacity(for driving) |
80L (drive system) |
|
Hydraulic oil tank capacity(for paint pump) |
12L (hydraulic pump) |
|
Dimension (LWH) |
3000×1980×2300mm |
|
Net weight |
1100kg |
|
Model |
