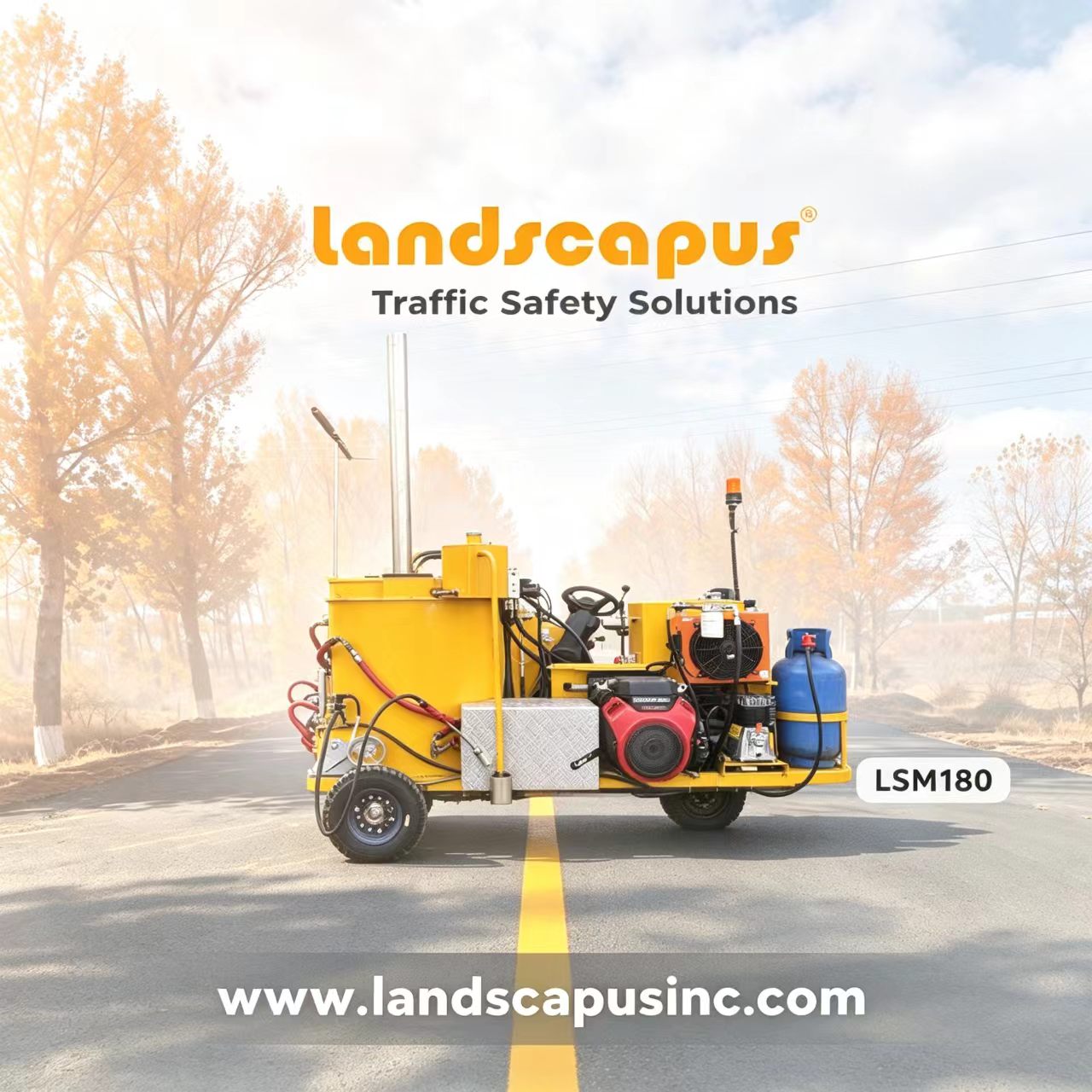

Model

LSM180

Engine

Honda GX690,16.5kW

Hydraulic system

DANFOSS ( Denmark )

Hydraulic oil tank

65L

Fuel tank

24L

Air compressor

320L/min,at 8 bar ，piston type air compressor

Heating method

LPG direct injection heating ，thermal oil circulation for temperature maintenance

Paint tank capacity

180L (360kg), hydraulic stirring

Glass bead tank

27L pressurized tank

Glass Beads spray gun

1pcs

Line width

15cm / 20cm（customized）

Marking mode

Flat line / automatic dashed line

Marking setting

Set the marking data on computer pannel.

Travel speed

0-10km/h

Climbing ability

13°

Construction efficiency

150-200 m²/h

Dimension (LWH)

2400×1650×1600mm

Net weight

1200kg

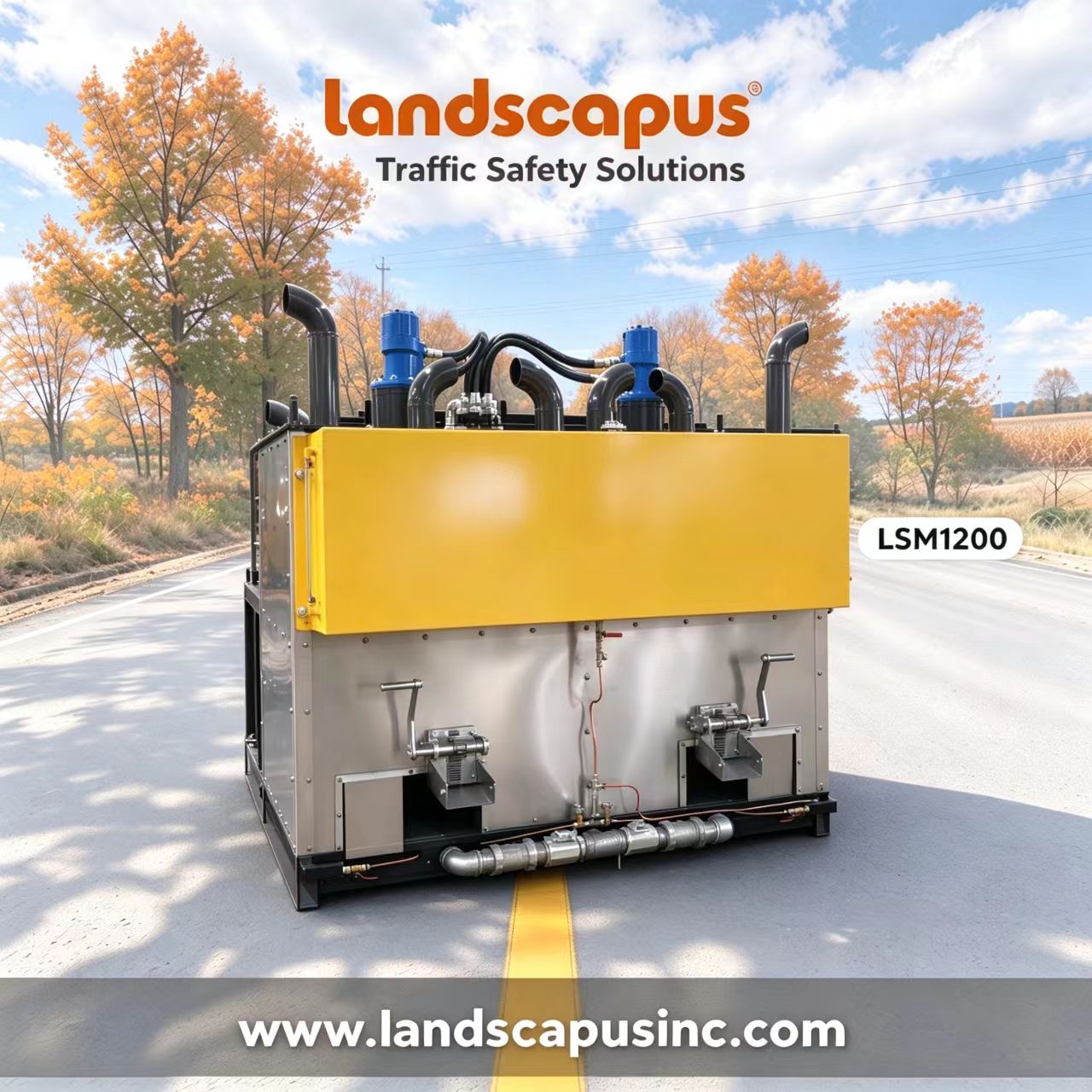

Model

LSM1200

Diesel engine

Electric start water-cooled diesel engine(Changchai,China)

Engine power

18HP (13.2kW)

Diesel tank

130L with level gauge

Heating stove

Dual-fuel diesel/LPG stove

Mixing system

Integrated hydraulic control valve, forward/reverse mixing with overload protection

Internal structure

Two independent combustion chambers equipped with insulation layers

Paint tank

Suspended installation

Tank bottom material

8mm high-carbon alloy steel

Paint tank capacity

500kg×2

Hydraulic oil tank

70L, please add 70L No. 46 anti-wear hydraulic oil

Dimensions (LWH)

1900×1750×1550mm

Net weight

1200kg

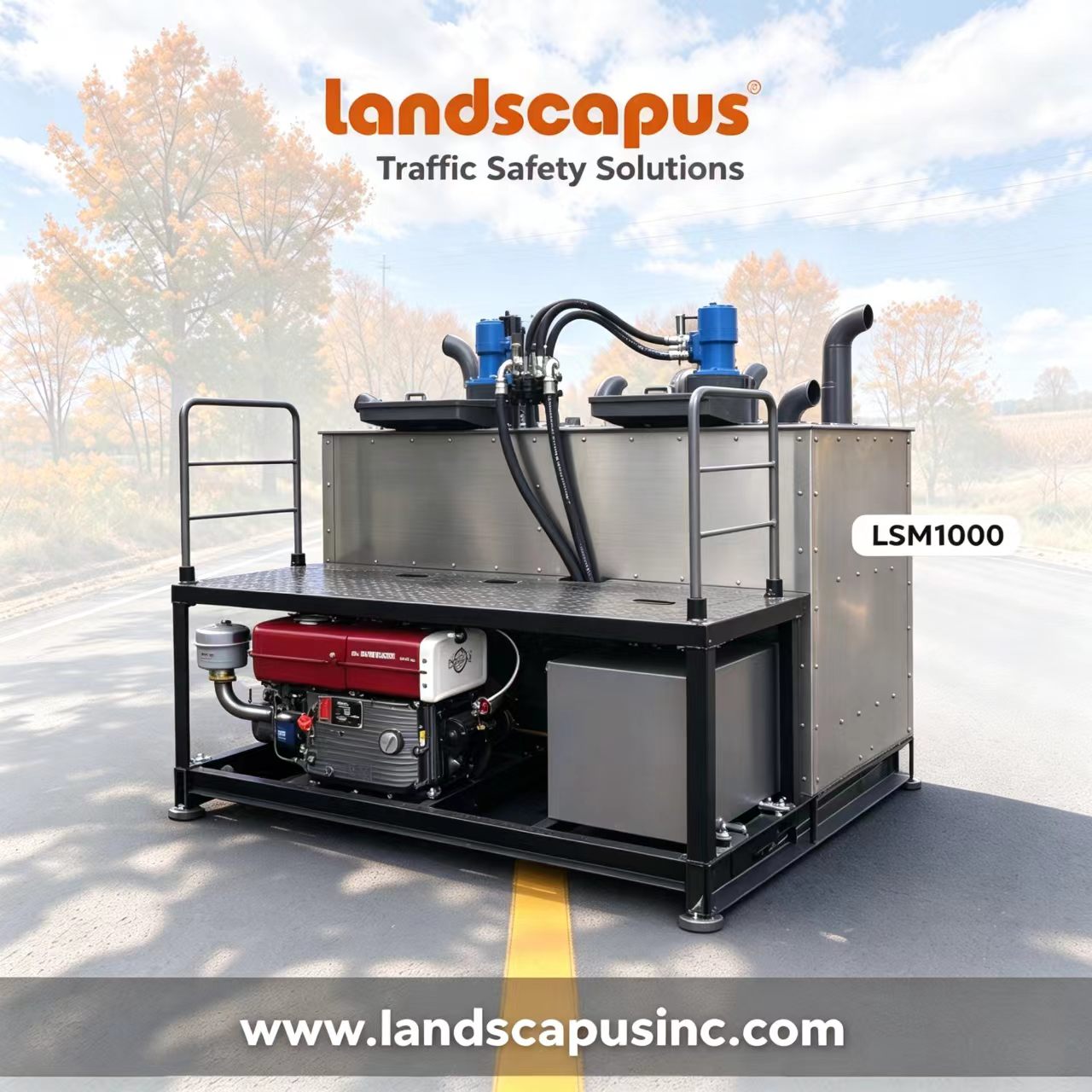

Model

LSM1000

Diesel engine

Electric start water-cooled diesel engine(Changchai,China) ）

Engine power

18HP (13.2kW)

Heating stove

LPG direct-injection stove

Mixing system

Integrated hydraulic control valve, forward/reverse mixing with overload protection

Internal structure

Two independent combustion chambers equipped with insulation layers

Paint tank

Suspended installation

Tank bottom material

8mm high-carbon alloy steel

Paint tank capacity

500kg×2

Hydraulic oil tank

70L, please add 70L No. 46 anti-wear hydraulic oil

Dimensions (LWH)

1800×1750×1550mm

Net weight

1070kg

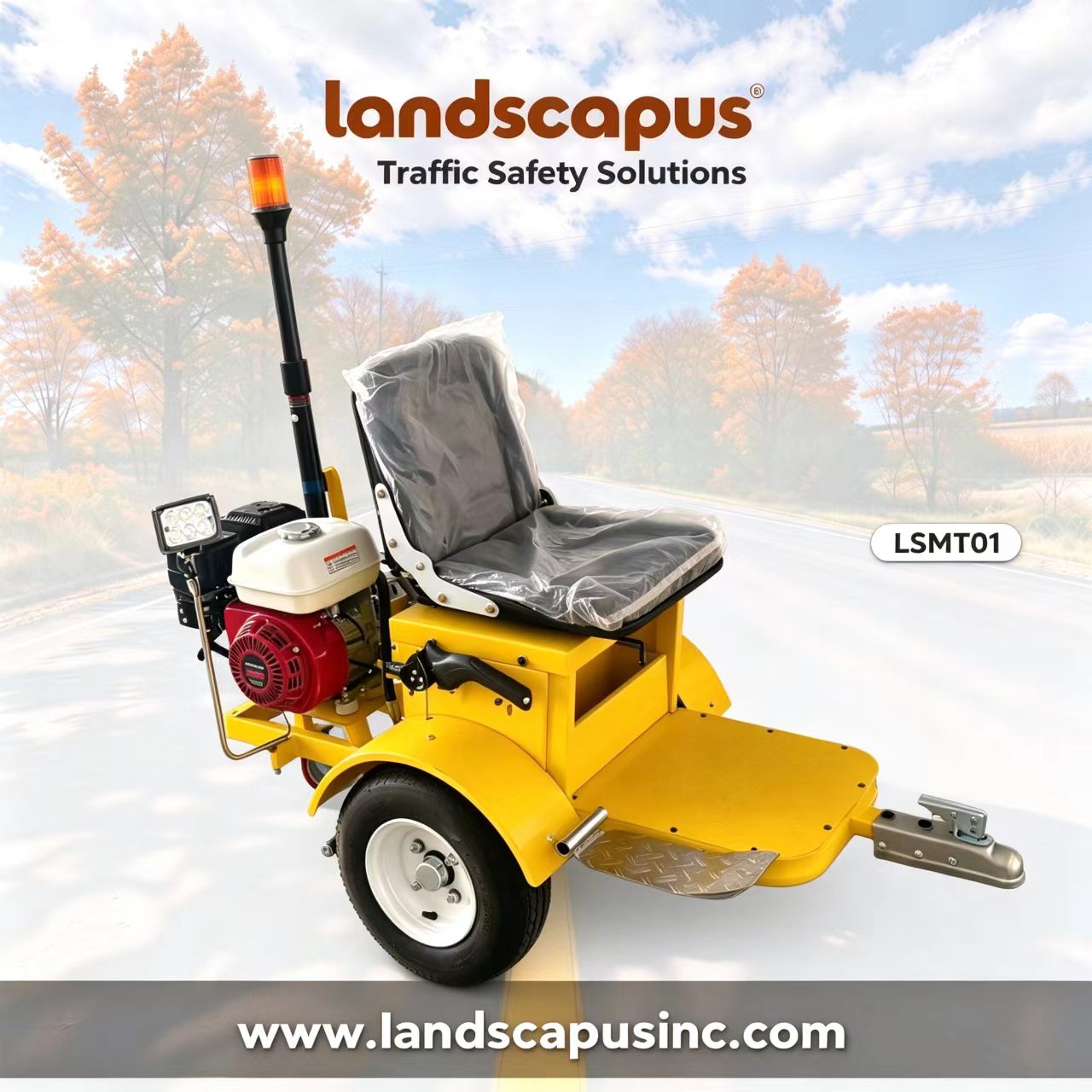

Model

LSM-T01

Engine

Honda  GX200(6.5HP)

Hydraulic system

DANFOSS(Denmark)

Control system

Pedal-controlled forward/reverse, handbrake for braking

 Forward speed

15 km/h

Reverse speed

10 km/h

Climbing ability

30°

Dimensions (LWH)

1450 × 650 × 1080 mm

Net weight

125 kg
