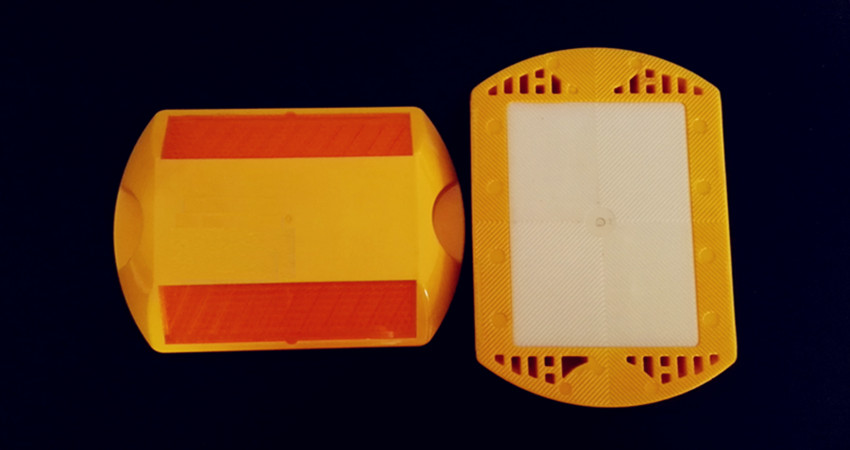

ROAD Markers (ROAD STUDS)

Overall Dimensions

Rectangle: 12cm*8cm*1.8cm

Slope of Reflecting Face :32 degrees to base

Area of Each Reflective Area

21 .0 square centimeters (3.25 square inches)

Slope of Reflecting Face :32 degrees to base

Area of Each Reflective Area

14.5square centimeters (2.25 square inches)

4" Non-reflective Plastic Pavement Markers conform to the following:

Plastic non-reflective pavement markers shall be, at the option of the

Contractor, either polypropylene or

ACRYLONITRILE-BUTADIENCE-STRYRENE (ABS) plastic type.

Ceramic non‐reflective pavement markers Type White and Yellow

shall consist of a heat‐fired, vitreous, ceramic

base and a heat‐fired, opaque, glazed surface to produce the properties required in these specifications.

The markers shall be produced from any suitable combination of intimately mixed clay, shale, talc,flints, feldspar or other inorganic material which will meet the properties herein required. The markers shall be thoroughly and evenly matured and free from defects which affect appearance or serviceability

Road markers, ASTM D4280, BS EN 1463, reflective road studs, Chip Seal Markers, reflective Road markers, road studs, raised pavement temporay markers.
